O’bloo led

Control and security of processing

Timer for exposure time programming: automatic shut-off

Pause button to pause treatment when needed

Automatic suspension of treatment if you leave the hammock to access the child

Handy and practical in all situations

Availability from one service to another: easy movement with handle, 4 castors and bumper contour rail

Practical storage for accessories available: top shelf, drawer, accessory rail, control screen

Incomparable effectiveness, fast and intensive treatment

The O’bloo 360° phototherapy cradle is ideal for severe jaundice, avoiding exchange transfusions and reducing the time of separation from the parents. Equipped with 12 blue LED treatment strips arranged in 2 semi-cylindrical hoods, this cradle developed by medipréma allows homogeneous exposure to light over the entire body surface of the child. It offers an optimal exposure of 5 mW/cm2 (80μw/cm²/nm) per semi-cylindrical hood.

An ergonomic cradle without compromising the comfort and safety of the child

The O’bloo 360° phototherapy cradle from médipréma facilitates the work of medical teams. Thanks to its folding screens, it allows easy access for the child. The screens on the 4 sides of the device avoid light disturbances for the nursing staff.

Intuitive and easy to use, it features a control box with an eye-level LCD display that makes it easy to program exposure time with an hour meter. A pause button is also available to suspend the treatment in the event of an operation on the child.

In addition to its ergonomic aspect, the O’bloo 360° cradle also optimizes the safety of the newborn by monitoring the temperature in the passenger compartment and monitoring its skin temperature with associated high and low visual and audible alarms to prevent any risk of hypo or hyperthermia. SpO2 and pulse measurements are available as options.

For the duration of the treatment, the child is placed on a hammock for his or her greatest comfort.

Protective screens ensure its safety and side windows allow it to be fully monitored.

DESCRIPTION

12 blue LED treatment strips arranged in 2 semi-cylindrical covers.
The top cover is mounted on a vertical slide, assisted by a cylinder, allowing the operator to move it with a travel of 330mm.

Luminous flux 5mW/cm² (80μw/cm²/nm) per semi-cylindrical hood – measured between 400 and 550 nanometers (active spectrum DIN 5031) with the BabyBlue radiometer in the center of the device

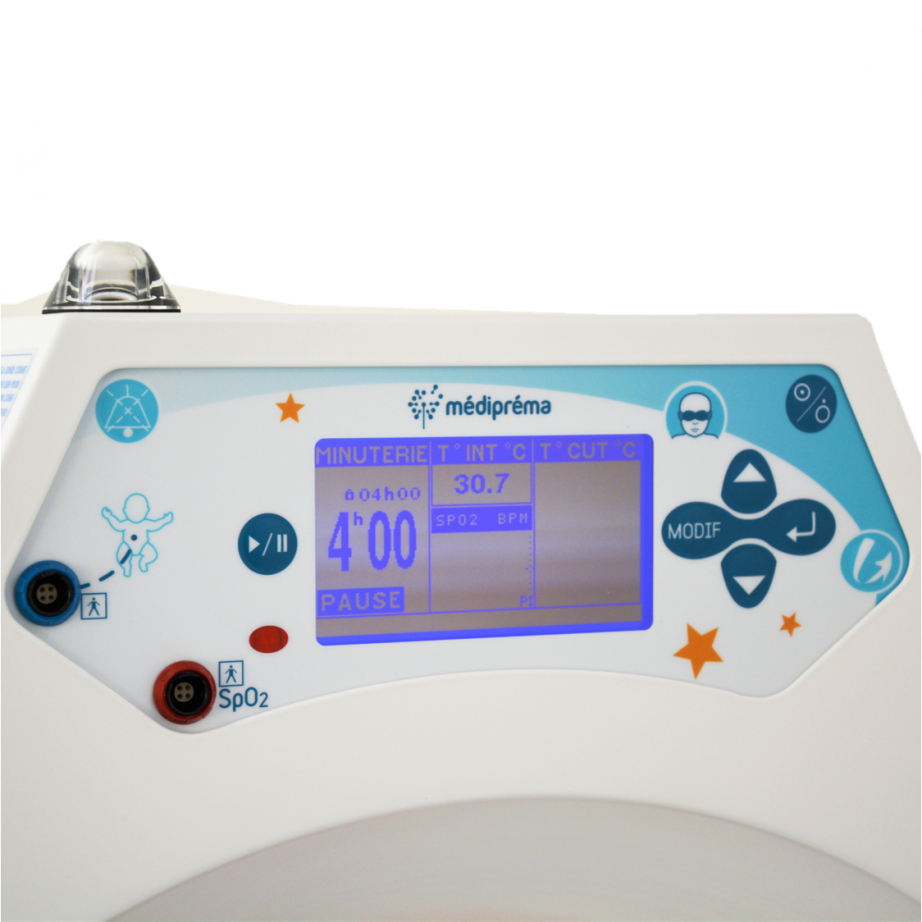

CONTROL BOX with LCD display at eye level for good visibility of settings and alarms

Exposure
time programming Hourly counter of the total time of use of the LEDs (message to check the luminous flux every 10,000 hours)
Pause button to suspend the treatment during an operation on the child

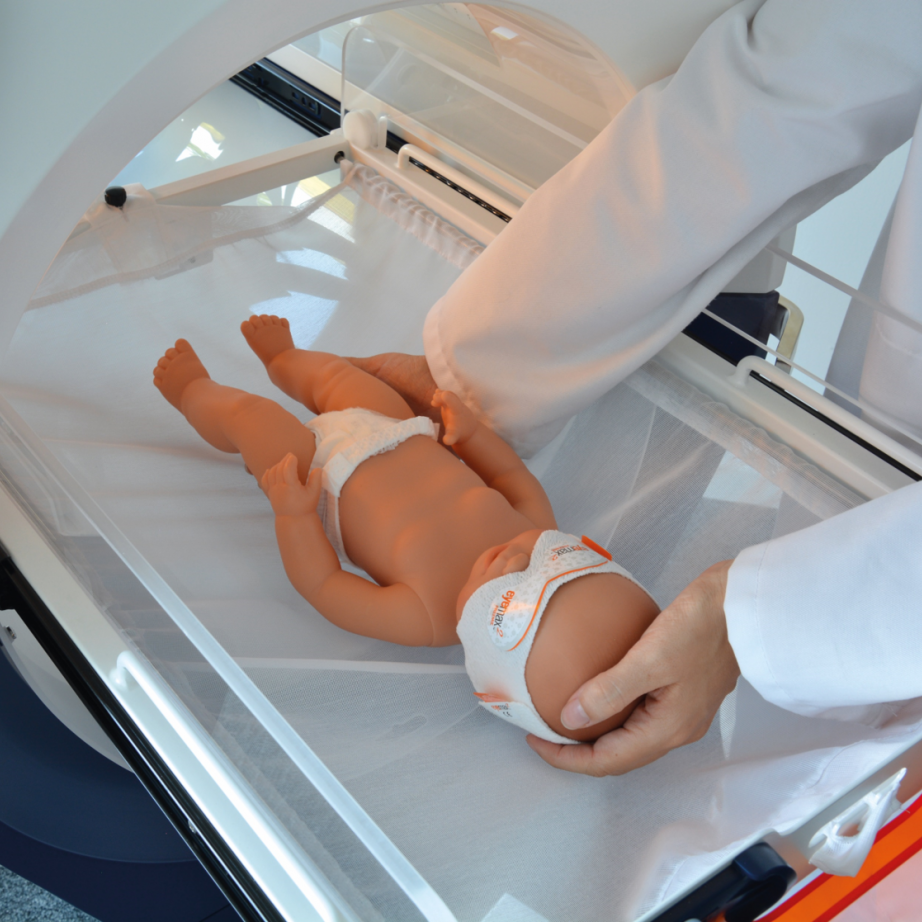

SLEEPING HAMMOCK:

Child placed on a comfortable hammock for the duration of the therapy
His body is fully exposed to the lighting
Bed coming out at 75%

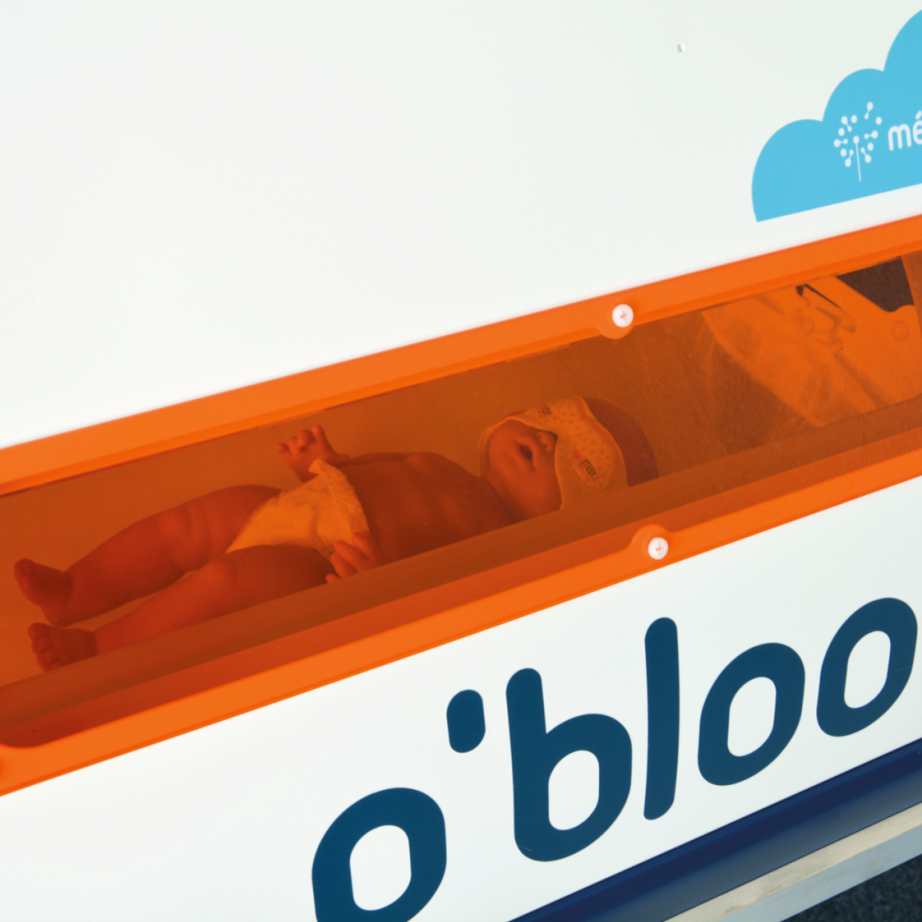

SUPERVISION AND ACCESS TO THE CHILD:

Protective screens ensure their safety and side windows allow them to be fully
supervised The removable and foldable front screen allows easy access to the child

AIR TEMPERATURE REGULATION:

Temperature monitoring inside the cradle
Alarm and automatic pause of the treatment if air temperature above 38°C

MONITORING OF THE NEWBORN’S SKIN TEMPERATURE: the associated high and low visual and audible alarms prevent any risk of hypothermia or hyperthermia

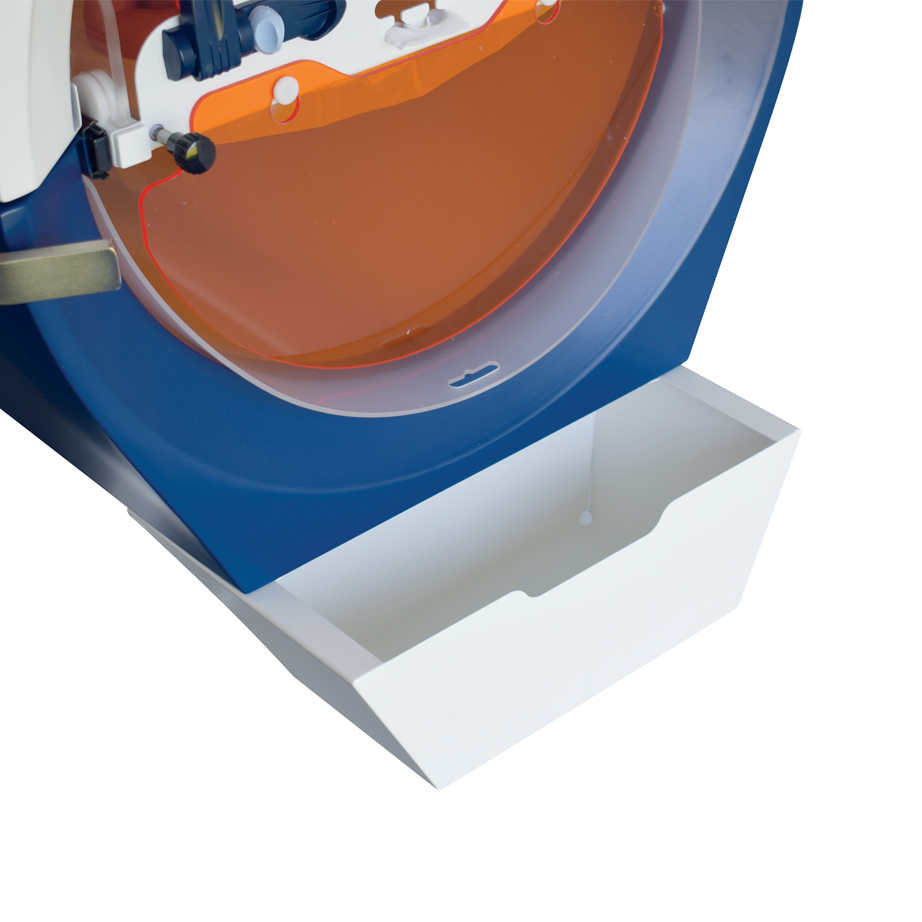

SHELF & DRAWER for easy storage of accessories
Many accessories can also be placed on the standard rail that surrounds the crib

DEVICE MOVEMENT:

Base equipped with 4 swivel castors, 2 of which have brake.
1 handle located on the back of the device allows it to be easily moved

TECHNICAL DATA

NOISE LEVEL: < 35d(B)A POWER CONSUMPTION: 120VA SUPPLY VOLTAGE: 110V-240V (50/60Hz) ELECTRICAL CLASS I DIMENSIONS (LxWxH): 833 x 645 x 1410 mm MAX WEIGHT: 10kg (infant + accessories) WEIGHT: 54 kg

OPTIONS AND ACCESSORIES

• Single-use phototherapy glasses (3 sizes)
• Single-patient skin probe
• Repositionable hydrogel probe cover
• Phototherapy Hammock

CE

marking Class IIa

medical device Electrical class I
