B'bloo
Contact phototherapy allowing effective treatment while promoting proximity between mother and child
<
>
<
>
BabyBlue
Ref: 5100
Measurement of radiation emitted by the fluorescent tubes or LEDs used in phototherapy
Detects the emissions in the blue part of the spectrum at 460 nm+/-10 nm
Follows the bilirubin absorption curve
All information on this product

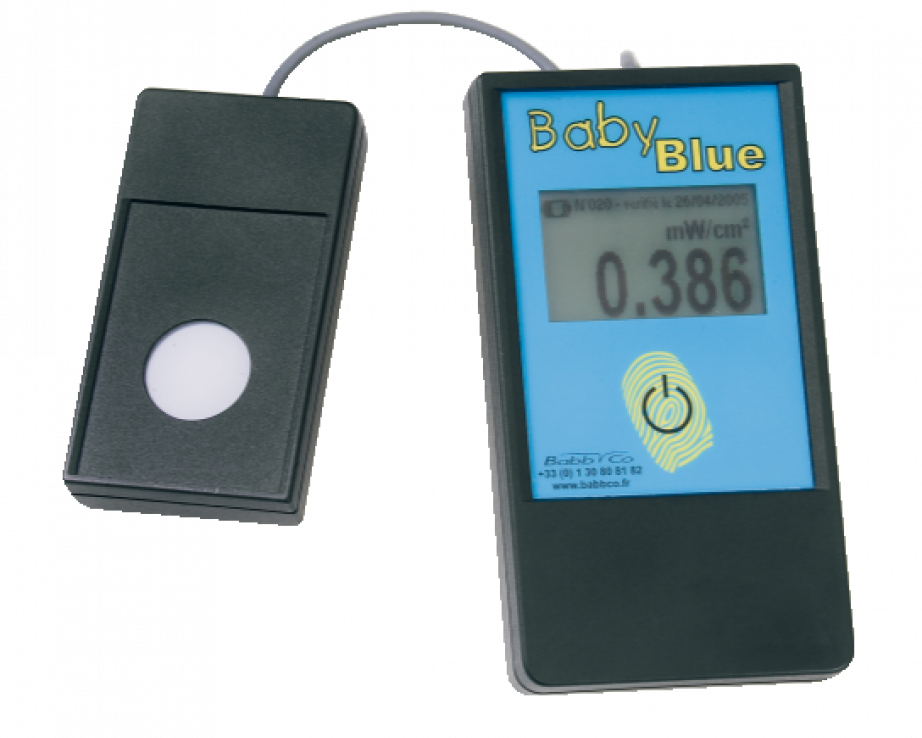

Médipréma’s BabyBlue phototherapy radiometer is designed to measure the radiation emitted by the fluorescent tubes or LEDs used in phototherapy in which the main emissions are in the blue part of the spectrum at 460 nm +/-10 nm (measurement in milliwatts per cm2, up to 10 mw/cm2). Its calibration follows the bilirubin absorption curve (DIN5031).
SPECIFICATIONS
Measure in milliwatts per cm2 (up to 5mw/cm2).
Reference wavelength : 460 nm blue
The rest of the spectrum is corrected by the sensor spectral response curve, very close to the DIN 5031 standard (bilirubin absorption curve) at 460 nm +/- 5nm
Angular response : cosine
IP box/IP sensor : 65/53
DESCRIPTION
Box dimensions (LxWxH) : 20x65x22mm
Sensor dimensions (LxWxH) : 85x45x16mm
Cable length : 1 meter
Weight : 150g (with battery)
Power supply : standard 9V battery 6LR61 type
Delivered with a metrological certificate in accordance with NF X 070 10 & 011
