SATIS 3552

SKU: 3552 Category: Neonatology

Management of newborn warming

Control modes: air and skin
Rapid temperature rise
Humidification by forced air duct on a water pan
Head-foot ventilation direction, a unique medipréma technology: does not disturb the airflow when opening the doors

Easy and ergonomic operation

Simple and intuitive control screen
Numerous accesses for the child: 2 large side-opening doors with portholes and a double-leaf door on the head and foot side, hose holes
Sleeping surface with manual proclive/declive

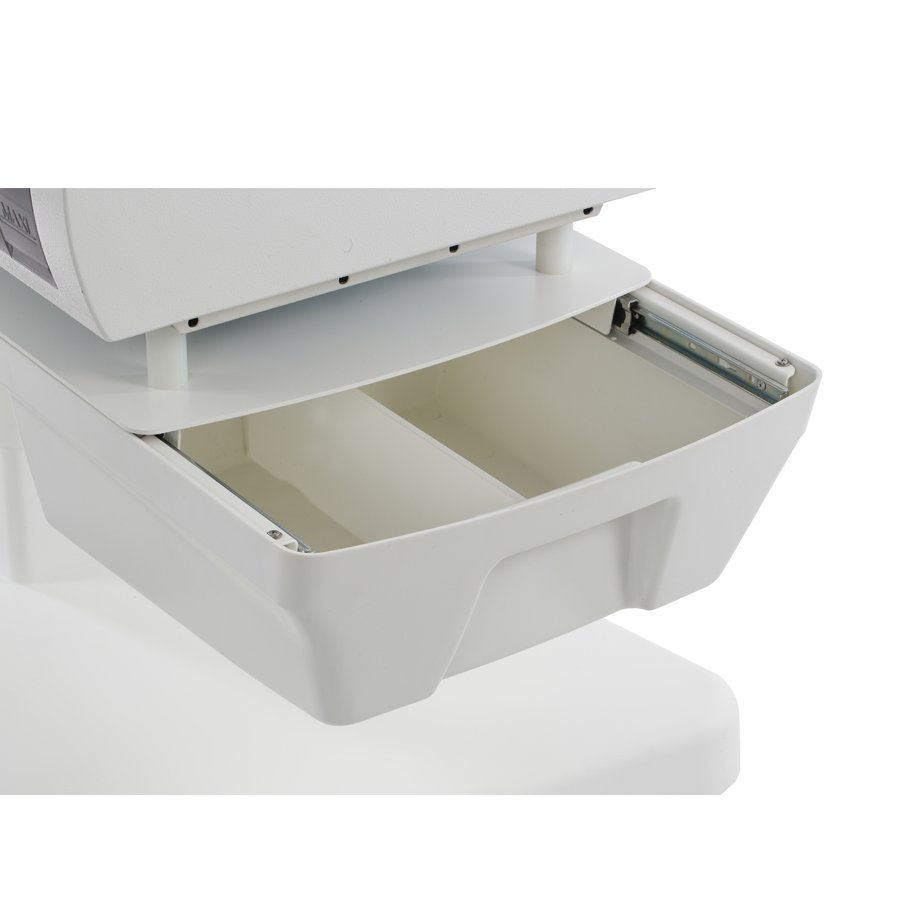

Plenty of storage space

Perfect visibility of the child

Optimum transparency of the Plexiglas interior
Visibility without deformation of the child on all 5 sides

View Product Details

Easy to maintain and hygienic

Every element easily accessible for disinfection

Compatible with steam / autoclave cleaning

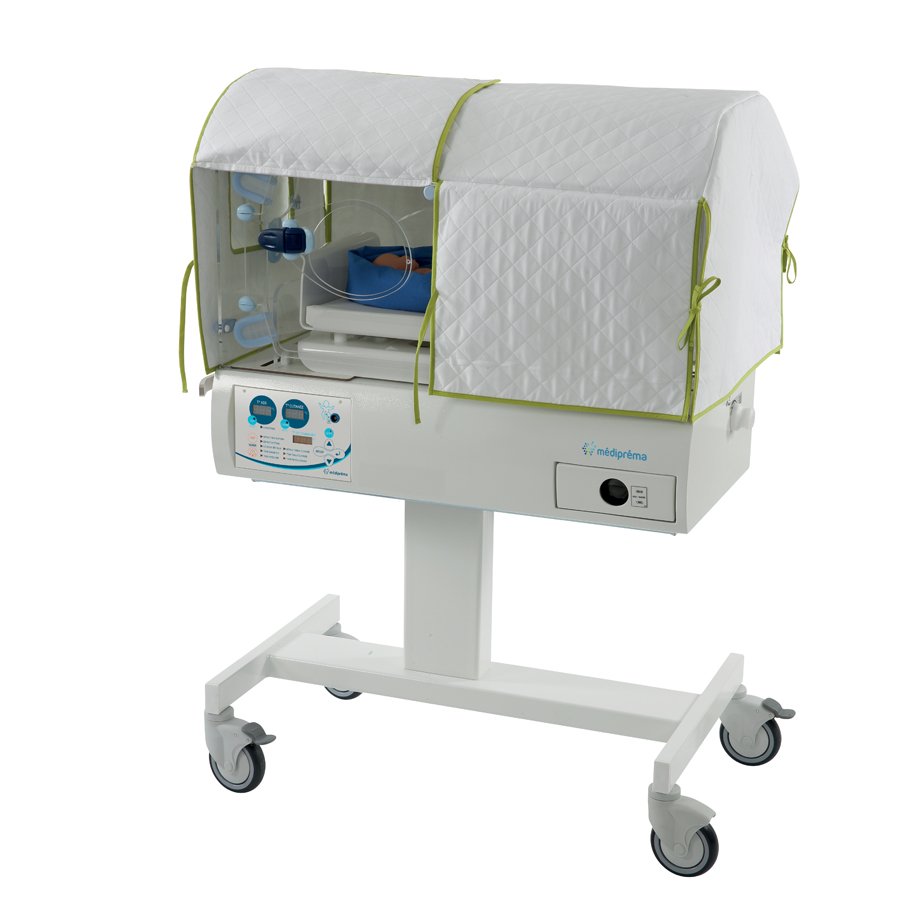

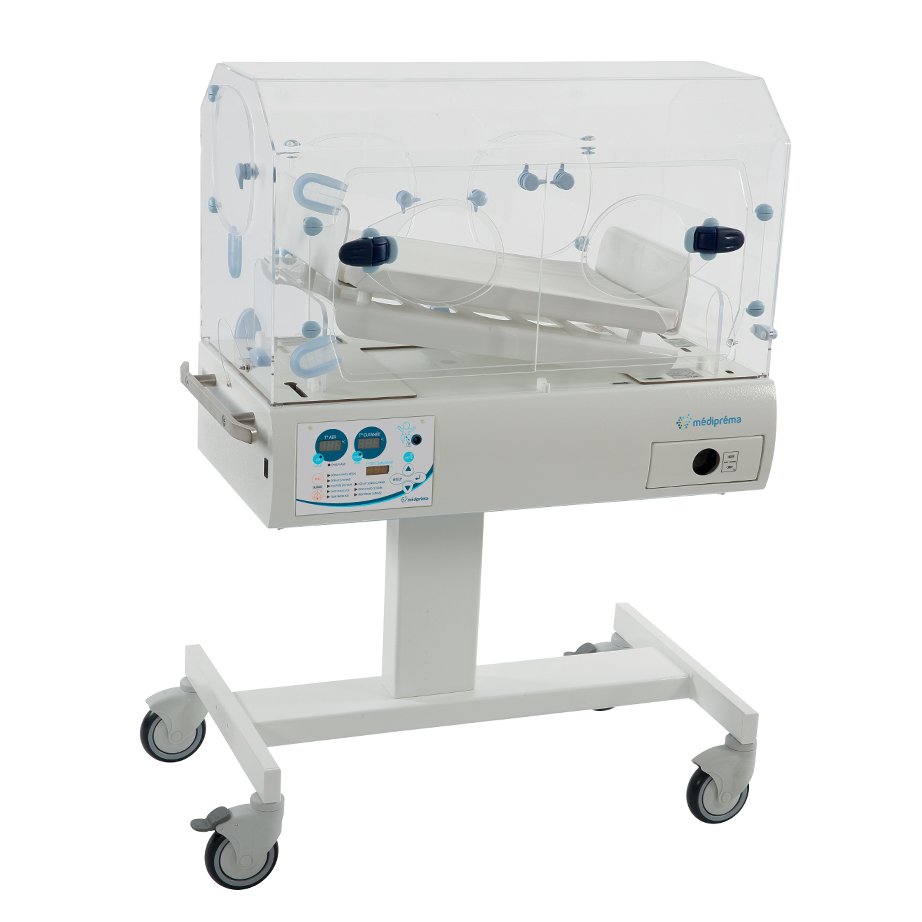

The Satis 3552 closed incubator has been designed for use in neonatal and maternity wards.

A reliable and robust incubator

The medipréma 3552 closed incubator is a robust, reliable and easy-to-use incubator. Thanks to its transparent Plexiglas interior, it offers perfect visibility of the child on 5 sides and easy access to the baby thanks to two large side-opening doors with window on the front side, two portholes on the rear side and a double door on the head side.

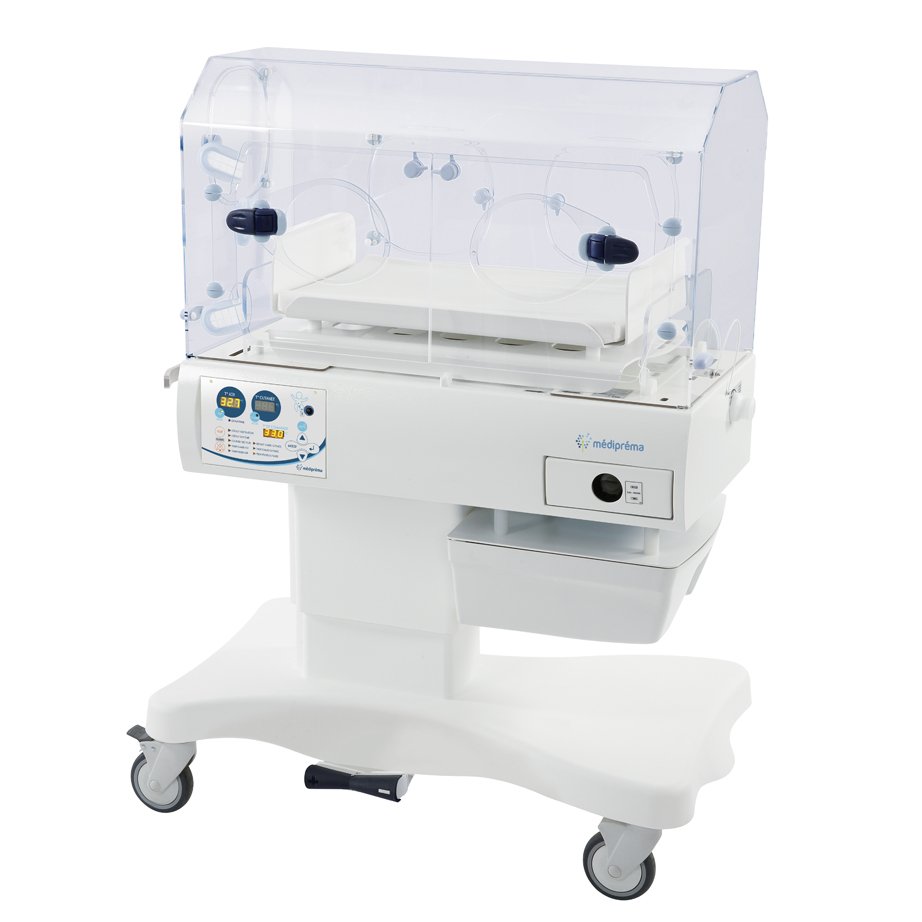

A height-adjustable version of the incubator is also available as an option to facilitate the work of the medical team.

A reliable and easy-to-use temperature control system

The Satis 3552 closed incubator from médipréma has a reliable thermoregulation system with two temperature control modes: air and skin.

Médipréma has designed a unique head-to-head (and not frontal) ventilation system that directs warm air along the walls of the passenger compartment, thus ensuring that the required temperature is maintained inside. It also promotes safe access to the child when opening doors without the risk of burns.

PERFORMANCE

THERMAL REGULATION

Air mode: regulation from 20 to 39°C (with safe extension beyond 37°C)
Cutaneous mode: regulation from 35 to 39°C (with secure extension beyond 37°C)

Fast and safe temperature rise without exceeding the set temperature. Use of Pt1000 platinum resistance temperature sensors, which vary almost entirely over time, making the control system more reliable

HYGROMETRY preset by forced air pipe on removable water tank with visualized level: minimum 45% max 70% ± 10%

OXYGEN INPUT

AUDIBLE AND VISUAL ALARMS

HEATING POWER: 450 watts at 230V (power consumption: 600 VA)

POWER SUPPLY: 220-240V 50/60 Hz

ELECTRICAL CLASS I

NOISE LEVEL≤ 45 ±3 dB(A)

DESCRIPTION

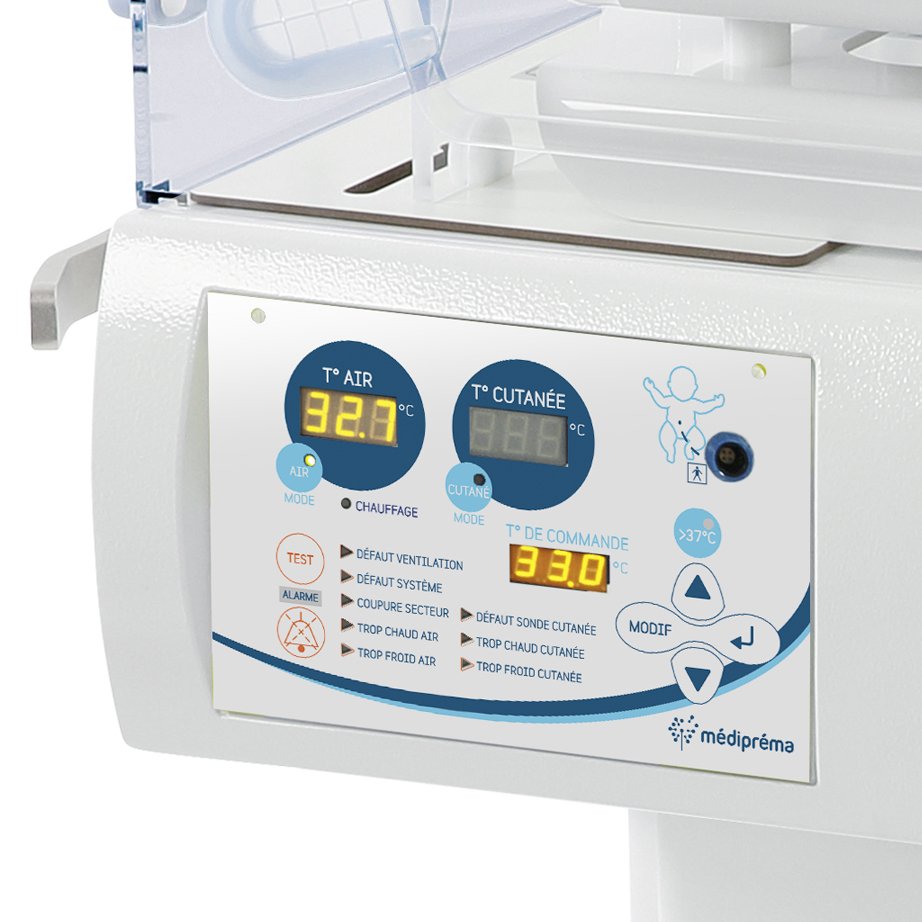

TEMPERATURE READING on 7-segment display. Good visibility of the various parameters

SPACIOUS INTERIOR (LxWxH 890x455x500 mm) made of bisphenol-free PMMA with perfect visibility on all 5 sides and plenty of access to the child

Cutaway front: 2 large side-opening doors with 2 portholes
Cutaway rear side: 2 large portholes
Head side: 1 large porthole

Ergonomic hinged locks significantly reduce noise caused by window openings, provide greater visibility in the passenger compartment, allow windows to be opened with the elbows without hygiene faults

4 ORIFICES facilitate the passage of sensors and hoses

COMFORTABLE SLEEPING SURFACE: memory foam mattress (LxWxH 610 x 390 x 30 mm)

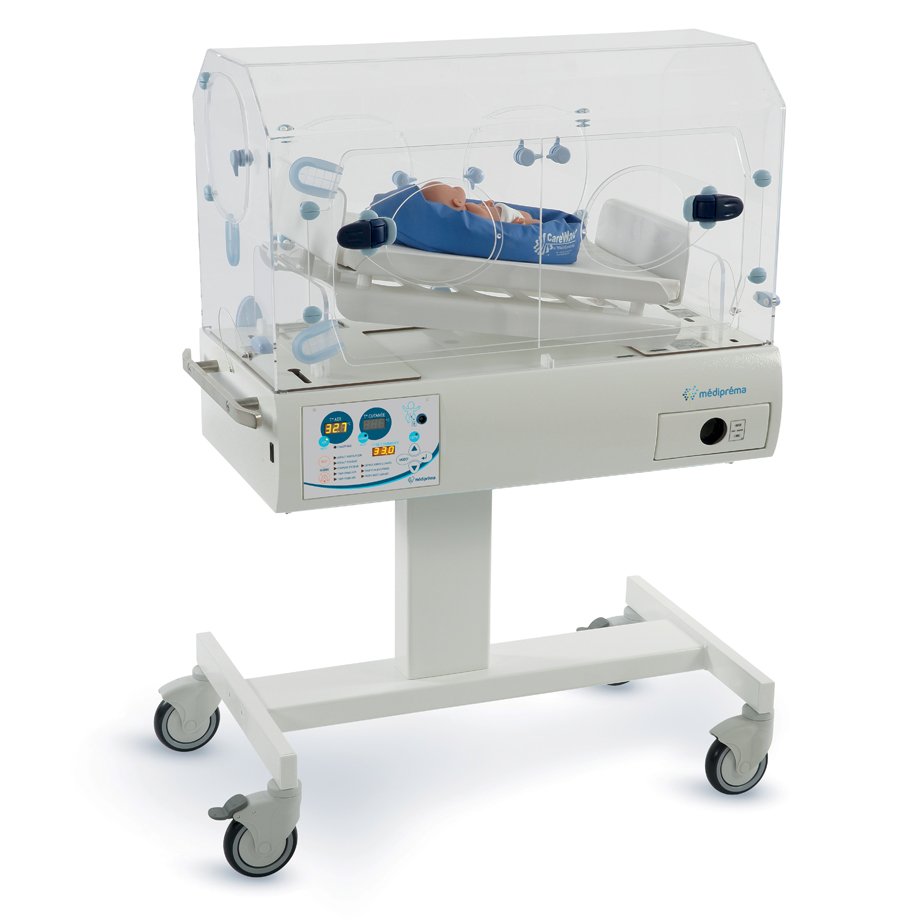

PROCLIVE/DECLIVE +/-10°.

RADIO CASSETTE AREA

FLOOR/SLEEPING SURFACE HEIGHT:
