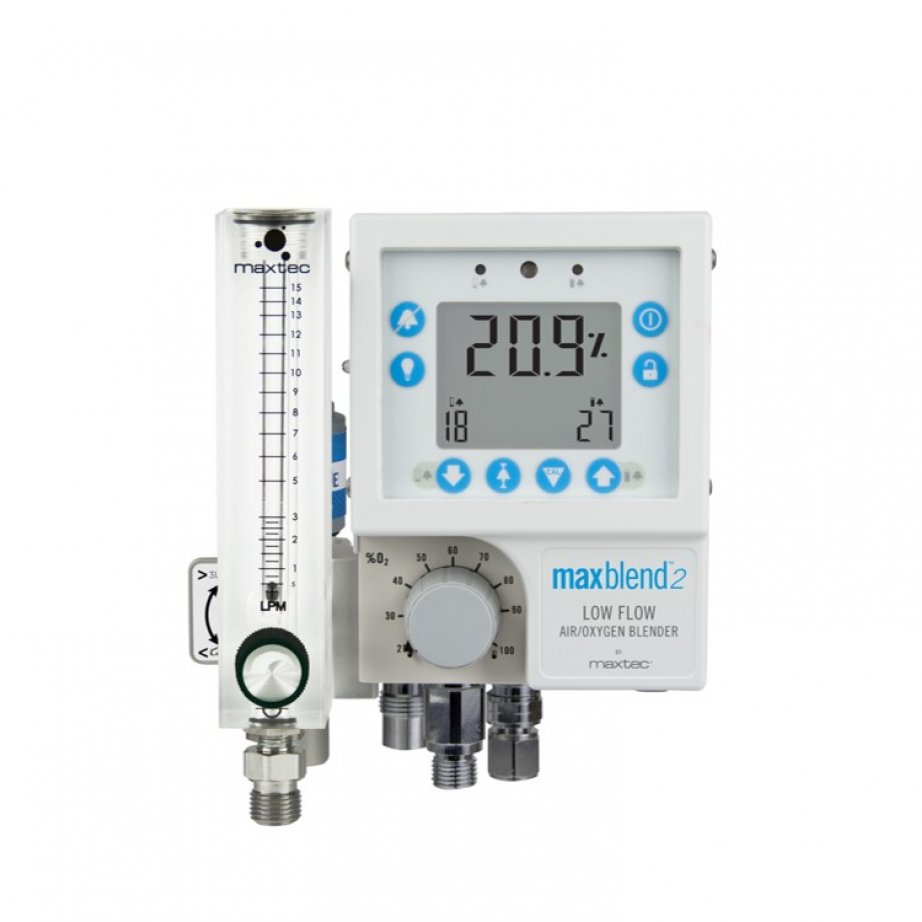

MaxBlend2 Air/Oxygen Mixer
Highly accurate air/O2 mixing over a wide flow range
Very fast response time
Built-in FiO2 analyzer with high and low alarm
The MaxBlend2 is a compact air/oxygen mixer incorporating a FiO2 analyzer with high and low alarm. Precise, it delivers an air/oxygen mixture over a wide range of flow rates from 0 to 30L/min. The response time is very fast (about 15s). A liquid crystal display ensures good visibility of the parameters and directly displays the measurement of the oxygen concentration recorded.
MaxBlend2 is supplied with:
- 1 adjoining acrylic flow rate with double scale: 0.25 LPM pitch up to 3 LPM or 1 LPM pitch from 5 to 15 LPM
- 2 Air/Oxygen hoses
The device runs on 4 x 1.5V alkaline batteries (with low battery indicator) and has a battery life of 5000 hours (optional mains power supply).
PERFORMANCE
Display Range: 0-100% Oxygen
Display resolution: 0.1% oxygen
Flow Rate (l/min): 0 to 30
Operating temperature: 15° – 40°C
Accuracy: ± 3%
Response time: approx. 15 sec. on 90% of the final value (at 25°C)
Battery life: 5000 hours (continuous use, no alarm)
High and low alarms: 15-99%
DESCRIPTION
Supplied with an adjoining acrylic flow rate with double scale
- 0.25 LPM steps up to 3 LPM
- no 1 LPM from 5 to 15 LPM
Good visibility of settings on the screen
Display backlight
Weight: approx. 2.5 kg
Power supply: Runs on 4 x 1.5V alkaline batteries (low battery indicator)
OPTIONS & ACCESSORIES
AC power
CE marking
Technical sheet for MaxBlend2 Air/Oxygen Mixer
